MAIN FEATURES
· 7" ultra-bright high contrast colour LCD
· Touch screen, keypad or USB keyboard control
· HOT-STAND-BY redundancy for dual system configurations
· Ethernet, RS-422 and USB interfaces
· Use USB memory for quick software upgrades, data logging and more
· Automatic, manual or remote dimming
· Pilot plug integrated in display
· Full AIS-SART support
· Text messaging
· VHF communication test function
· R4 Navigation Sensor Compatible
· Gimbal or flush mounting
TECHNICAL SPECIFICATIONS
PHYSICAL

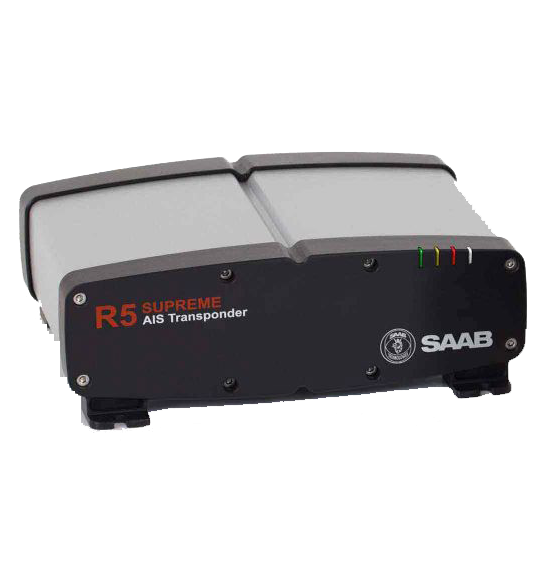

Transponder Size W x H x D: 237x79x170 mm
Weight: 1.7 kg

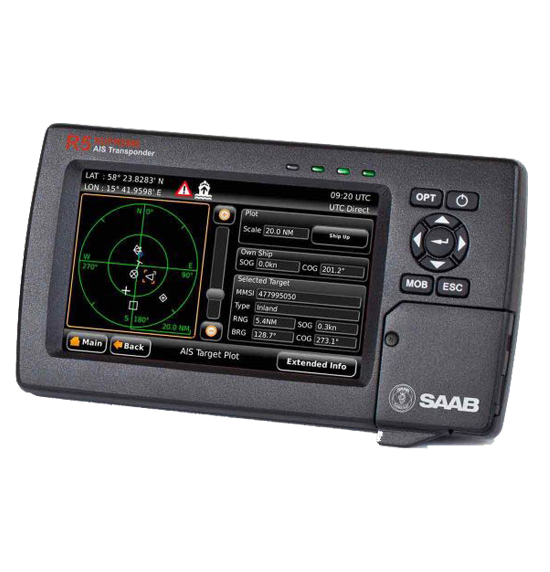

Display
Size W x H x D: 255x140x85 mm
Weight: 1.8 kg
Resolution: 800x480 (WVGA)
TFT: IPS-Pro
Touch: Resistive
Brightness: 800 Nits
Power input: 12/24 VDC
POWER CONSUMPTION
Transponder: 20 W (60 W peak) Control & Display unit: 10 W
GPS RECEIVER (INTERNAL)
50 channels (Ready for DGPS)
Frequency: L1 (1575.42 MHz)
Update rate: 1 Hz
Antenna feed: 5 V DC
Position accuracy (SA off)
Position <2.0 m: DGPS (CEP)
Position <2.5 m: GPS (CEP)
Sensitivity: Tracking -162 dBm
Cold Start -148 dBm
VHF TRANSCEIVER
SDR Transceiver
Frequency: 155-163 MHz
Output power: 1/12.5 W (±1.5 dB)
Sensitivity: <-111 dBm
